Flashback Friday: Building the Shed, Week 3

It’s another Flashback Friday and we’re gonna raise the roof! That’s what you do after you put the walls up. 🙂

Before I bought the roofing materials for the shed I did a lot of research on different types of roofs. There are a lot of options but I went with a metal roof to keep with the farmhouse aesthetic I want for the homestead. I priced a few different stores and ended up going with the Pro-Rib from Menards, you can order it in lengths cut to the exact size you need and it’s very reasonably priced.

If you don’t know much about metals roofs, you have to order more than just the roof panels. There’s the drip edge, rake trim, ridge cap, and, since I went with a snap ridge cap, I also had to order reverse j-mold (the snap ridge cap snaps into the reverse j-mold). You’ll also need screws, the roofing manufacturer should have color coordinated screws with a washer.

WP_20151031_15_59_35_Pro

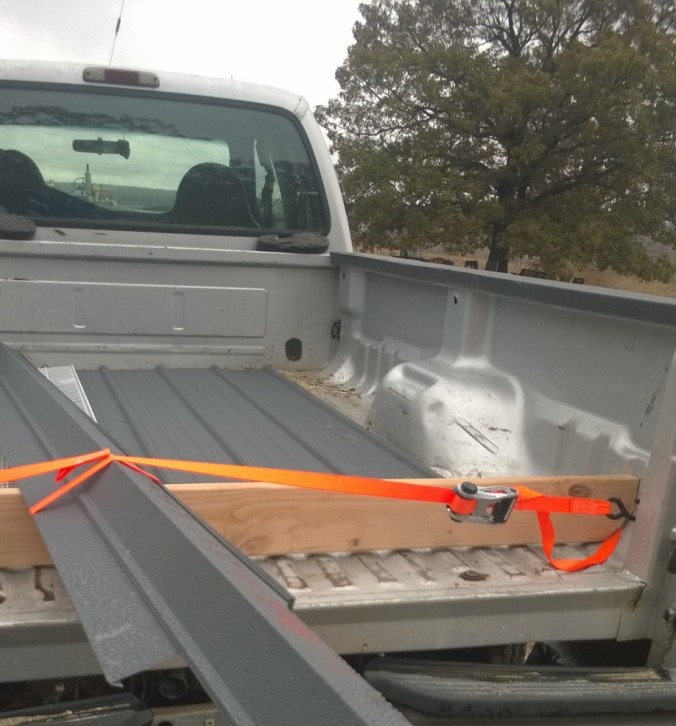

It doesn’t look like much but this is all of the metal for the shed roof: panels, drip edge, rake trim, ridge cap, & reverse j-mold.

Before we installed the roof we first had to put on foil-bubble-poly… what is that?? Let me tell you. If you remember back to when we framed the shed, we put roof purlins horizontally across the rafters instead of roof sheathing like you would put on if you shingled a roof. You could use roof sheathing with a metal roof but it increases the cost, in the case of the shed there was no reason to go with the sheathing.

Ok, back to the foil-bubble-poly. Metal roofs have a tendency to sweat in humid weather but with the foil-bubble-poly installed between the purlins and the roof panels, it will prevent the condensation from forming and “raining” in the shed. Why is it called foil-bubble-poly? Because it’s three layers: foil, bubble (think bubble wrap), and polyethylene. The foil side (shiny) faces out and the poly side (white) faces down.

WP_20151114_14_16_07_Pro

The underside of the foil-bubble-poly, this will keep the underside of the metal roof from forming condensation and “raining” into the shed.

Once we had the foil-bubble-poly installed it was time to start on the metal pieces. First we put the reverse j-mold along the top of the roof, we measured the ridge cap to see how far down from the ridge the reverse j-mold needed to be installed.

After the reverse j-mold was installed we put on the drip edge. This runs along the bottom edge of the roof and keeps water from getting underneath the roof panels.

WP_20151114_14_42_19_Pro

Here you can see the top of the foil-bubble-poly, the reverse j-mold (the ridge cap will snap into this), and we’re putting on the drip edge.

Now that all of that is done it’s time to put some roof panels on! Now we’re gettin’ somewhere! The panels were 36″ wide so each side of the roof took four full panels and a partial panel (we cut to size onsite, the rake trim covered the slightly uneven cut edge on the end).

WP_20151114_16_04_34_Pro

The drip edge, reverse j-mold, and first couple panels of the roof are on!

WP_20151115_11_49_09_Pro

One side of the roof is done!

The shed is built on a pretty steep hill so the roof on the west side wasn’t too high off the ground, we could reach it with a ladder. The east side, however, was too high to work off a ladder so we built a scaffold. The scaffold was 8 feet high, now I know that’s not extremely high but I’m not a fan of heights. Not good times for me.

WP_20151205_12_56_01_Pro

We built a scaffold to finish the roof on the east side of the shed, it’s pretty high off the ground due to the slope of the hill.

Before we started putting the panels on the east side of the roof we had to put the reverse j-mold along this side of the roof and snap on the snap ridge cap. The reverse j-mold was easy to get on, the snap ridge cap… not so much. But we got it on after we wrestled with it a bit. The reason I chose the snap ridge cap over a traditional ridge cap was due to the size. The snap ridge cap is a lot smaller and the proportions work better with the size of the shed. A traditional ridge cap would have overwhelmed the roof line of the shed.

WP_20151205_14_12_53_Pro

It’s hard to see in the pic but we’ve got the ridge cap snapped into the reverse j-mold. The metal roof panels will slide right up into the reverse j-mold.

Once the reverse j-mold, snap ridge cap, and drip edge were all done on the east side of the roof it was time to start installing roof panels.

WP_20151205_16_41_26_Pro

And here’s the finished roof!

And that’s a beautiful finished roof!

Next time we’ll put on the siding! We’re getting close to having a finished shed! 🙂

Cheers!

D
